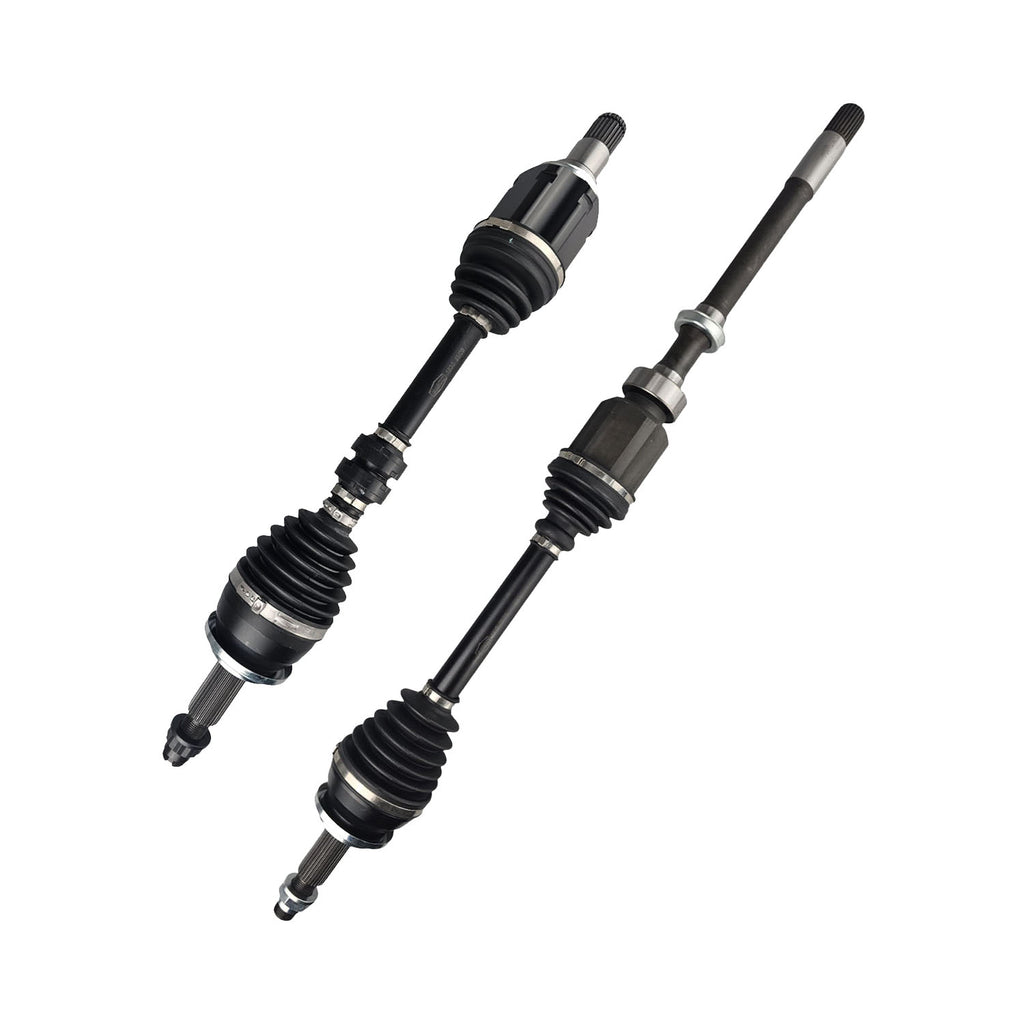

CV Axle Drive Shaft PAIR Left and Right Hand Side Manual FWD
PAIR Kit, Manual Transmission Only
For CVT Models Please See CVA1211-CVA1241
Vehicle Fitment
- Toyota RAV4 ZSA42 2.0L 3ZRFE FWD Manual (02/2013 - 02/2019) Manual Only
Includes Sub-Models GX
Sizing and Specifications
Right CV Shaft
- Length (Compressed): 990mm
- Spline Count - Outer/Wheel Side: 30T
- Spline Count - Inner/Diff Side: 24T
- Inboard Joint Type: Tripod
- Outboard Joint Type: Ball
- Bearing Outer Diameter on Extension Shaft: 67mm
- Bearing Width: 23mm
- Extension Shaft Length From Outside of bearing: 385mm
- Extension Shaft Length From Tin Oil Seal Dust Cover: 287mm
- Hub Nut Style: M22 x 1.5
Left CV Shaft
- Length (Compressed): 667mm
- Spline Count - Outer/Wheel Side: 30T
- Spline Count - Inner/Diff Side: 24T
- Inboard Joint Type: Tripod
- Outboard Joint Type: Ball
- Hub Nut Style: M22 x 1.5
What's Included
- 2 x CV Shaft (Left and Right)
Built tough to OEM specifications using heat-treated chrome steel; maximizing product life. High-quality Neoprene dust boots and stainless steel clamps helps to prevent contamination. Moly grease for working at varying angles and speeds without friction, at high revolutions.
Our comprehensive range of constant velocity driveshafts is continuing to lead the way in the driveline aftermarket. The excellent performance and quality has resulted in their growing popularity. The range now boasts over 750 individual part numbers, which covers the vast majority of passenger and 4WD applications on Australian roads today. All our CV driveshafts are covered by a 12 month / 20,000 km warranty. Please note: this excludes CV Boots, which are only warranted for 3 months from date of purchase.
