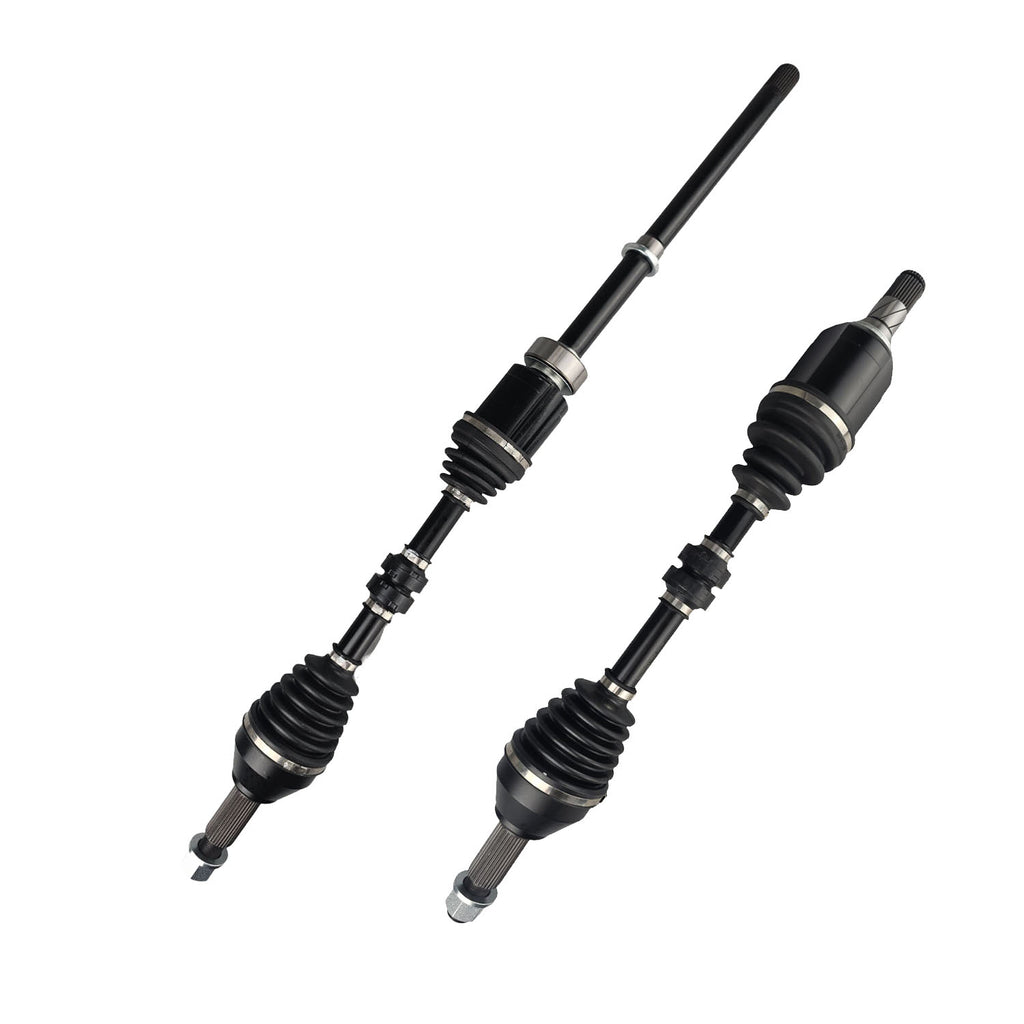

CV Axle Drive Shaft - PAIR Left and Right Hand Side AWD CVT
PAIR Kit - AWD CVT Only. Please Check Specs for Accurate Fitment
For FWD Models Please See CVA1633-CVA1634
Built tough to OEM specifications using heat-treated chrome steel, maximizing product life. High-quality Neoprene dust boots and stainless steel clamps helps to prevent contamination. Moly grease for working at varying angles and speeds without friction, at high revolutions.
Vehicle Fitment For:
- Nissan Pathfinder R52 2.5L QR25DER Hybrid Supercharged AWD CVT (08/2014 - 01/2021) AWD CVT Only
Sub-Models Include ST-L, TI, Hybrid, TI Hybrid, Hybrid OP
- Nissan Pathfinder R52 3.5L VQ35DE VQ35DD AWD CVT (10/2013 - 01/2021) AWD CVT Only
Sub-Models Include ST, ST-L, Ti, N-Trek
Sizing and Specifications
Right CV Shaft
- Length (Compressed): 1054mm
- Spline Count - Outer/Wheel Side: 32T
- Spline Count - Outer/Wheel Side: 29T
- Outboard Joint Type: Ball
- Inboard Joint Type: Tripod
- Extension Shaft Bearing OD: 72mm
- Extension Shaft Length From Outside of Bearing: 455mm
- Extension Shaft Length Outside of Tin Dust Cover to End: 292mm
- Hub Nut Style: M24 x 1.5
Left CV Shaft
- Length (Compressed): 695mm
- Spline Count - Outer/Wheel Side: 32T
- Spline Count - Outer/Wheel Side: 29T
- Outboard Joint Type: Ball
- Inboard Joint Type: Tripod
- Hub Nut Style: M24 x 1.5
What's Included
Our comprehensive range of constant velocity driveshafts is continuing to lead the way in the driveline aftermarket. The excellent performance and quality has resulted in their growing popularity. The range now boasts over 750 individual part numbers, which covers the vast majority of passenger and 4WD applications on Australian roads today. All our CV driveshafts are covered by a 12 month / 20,000 km warranty. Please note: this excludes CV Boots, which are only warranted for 3 months from date of purchase.
