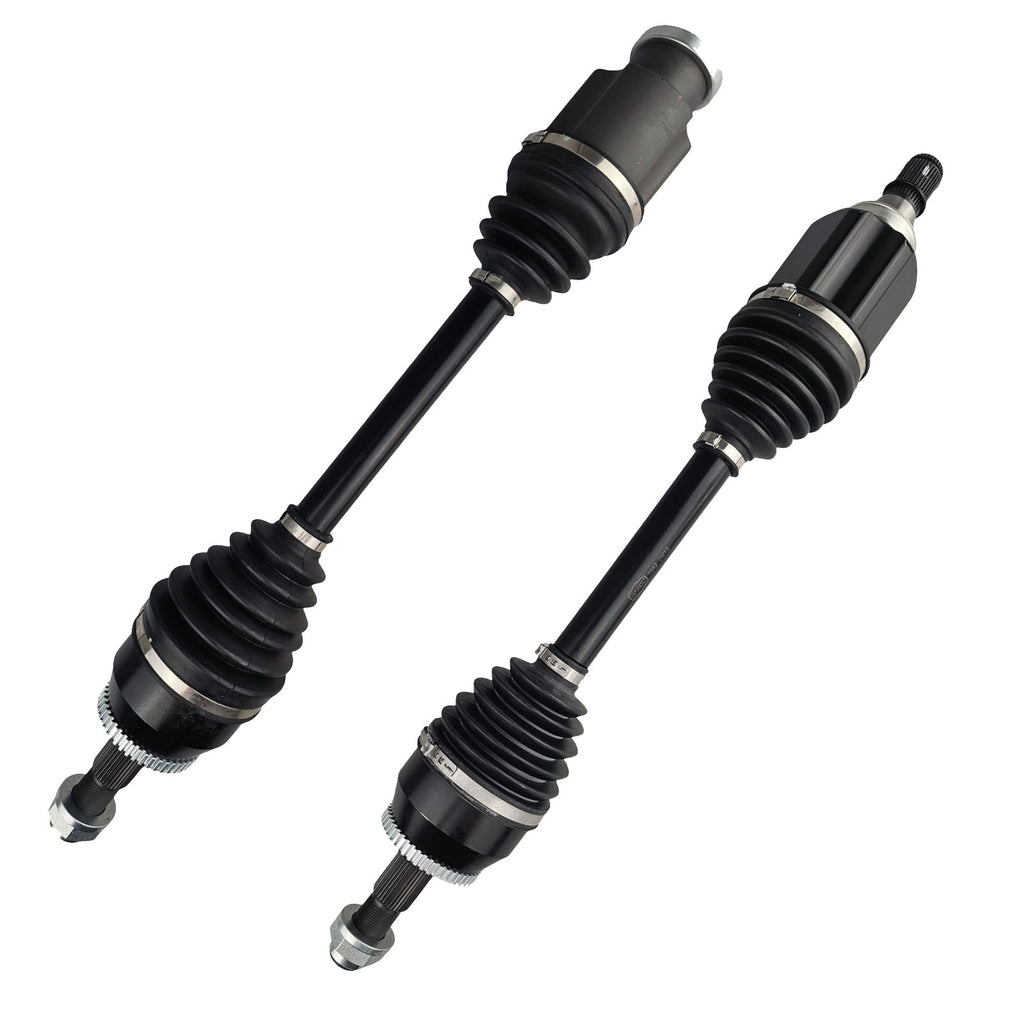

CV Axle Drive Shaft - PAIR Front Left and Right Hand Side DCT FWD
Pair Kit
Built tough to OEM specifications using heat-treated chrome steel, maximizing product life. High-quality Neoprene dust boots and stainless steel clamps helps to prevent contamination. Moly grease for working at varying angles and speeds without friction, at high revolutions.
Vehicle Fitment For:
- MG HS SAS23 1.5L LFV Turbo FWD DCT (10/2019 - 03/2024)
Includes Sub-Models Core, Essence, Essence Anfield Edition, Excite, Vibe
Sizing and Specifications
Left CV Shaft
- Length (Compressed): 637mm
- Spline Count - Outer/Wheel Side: 36T
- Spline Count - Inner/Diff Side: 34T
- Inboard Joint Type: Tripod
- Outboard Joint Type: Ball
- Hub Nut Style: M24 x 1.5
- Drive Shaft Seal - Diff Side ID: 30.5mm
- ABS Ring Teeth: 48
Right CV Shaft
- Length (Compressed): 610mm
- Spline Count - Outer/Wheel Side: 36T
- Spline Count - Inner/Diff Side: 27T
- Inboard Joint Type: Tripod
- Outboard Joint Type: Ball
- Hub Nut Style: M24 x 1.5
- ABS Ring Teeth: 48
What's Included
Our comprehensive range of constant velocity driveshafts is continuing to lead the way in the driveline aftermarket. The excellent performance and quality has resulted in their growing popularity. The range now boasts over 750 individual part numbers, which covers the vast majority of passenger and 4WD applications on Australian roads today. All our CV driveshafts are covered by a 12 month / 20,000 km warranty. Please note: this excludes CV Boots, which are only warranted for 3 months from date of purchase.
