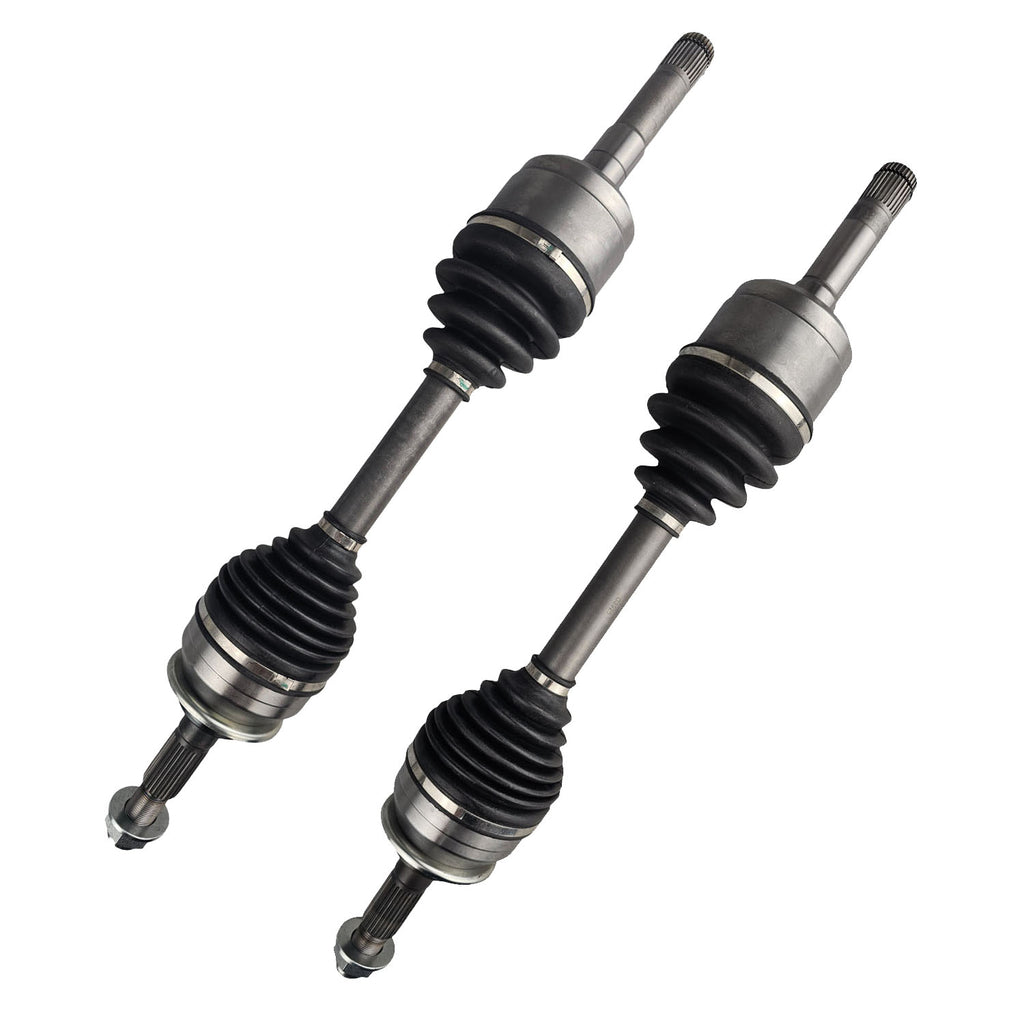

One Brand New Left & Right Drive Shaft
***PAIR Front, Raised Height - Without Diff Drop, Automatic Only***
Built tough to OEM specifications using heat-treated chrome steel, maximizing product life. High-quality Neoprene dust boots and stainless steel clamps helps to prevent contamination. Moly grease for working at varying angles and speeds without friction, at high revolutions.
Vehicle Fitment
- Ford Everest UB RXXMA (06/2022~2026) 2.0L Diesel YNWS, YNNS, YNTS
- Ford Everest UB RXXMA (06/2022~2026) 3.0L Diesel BFWS
- Ford Ranger PY T6.2 MEF9, MFF6, MAF6, MIF9 (06/2022~2026) 2.0L Diesel P02S, YN2S
- Ford Ranger XL Super Cab PY T6.2 MIF6, MFF6, MFF9 (06/2022~2026) 2.0L Diesel YN2S, P02S
- Ford Ranger XLT, Sport, Wildtrak, Platinum PY T6.2 MFF7, MEF7 (06/2022~2026) 3.0L Diesel BF2S
- Volkswagen Amarok TDI405 Core 4Motion NF T1 12/2022~2026 2.0L Diesel DXKB, DXKA
- Volkswagen Amarok TSI452 Aventura 4Motion NF T1 12/2022~2026 2.3L Petrol DXVA
- Volkswagen Amarok TDI600 4Motion NF T1 12/2022~2026 3.0L Diesel DXWA
⚠️ Important Notes for You:
We strongly advise using the Australian Number Plate lookup to confirm fitment.
Sizing and Specifications
Left CV Shaft
- Length (Compressed): 689mm
- Spline Count - Outer/Wheel Side: 28
- Spline Count - Inner/Diff Side: 29
- Inboard Joint Type: Ball
- Outboard Joint Type: Ball
- Drive Shaft Seal (Inner) ID: 35.5 mm
- Hub Nut: M24x1.5
Right CV Shaft
- Length (Compressed): 708mm
- Spline Count - Outer/Wheel Side: 28
- Spline Count - Inner/Diff Side: 29
- Inboard Joint Type: Ball
- Outboard Joint Type: Ball
- Drive Shaft Seal (Inner) ID: 35.5 mm
- Hub Nut: M24x1.5
What's Included
Backed by our 12 month/20,000km warranty and technical support.
