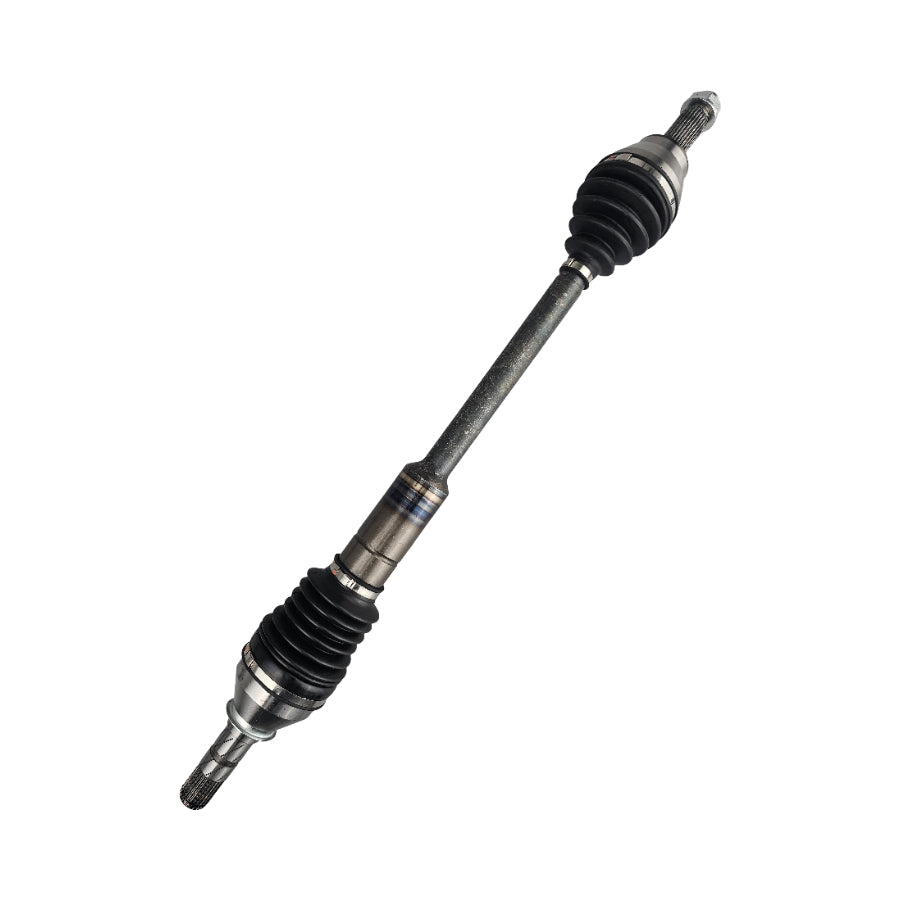

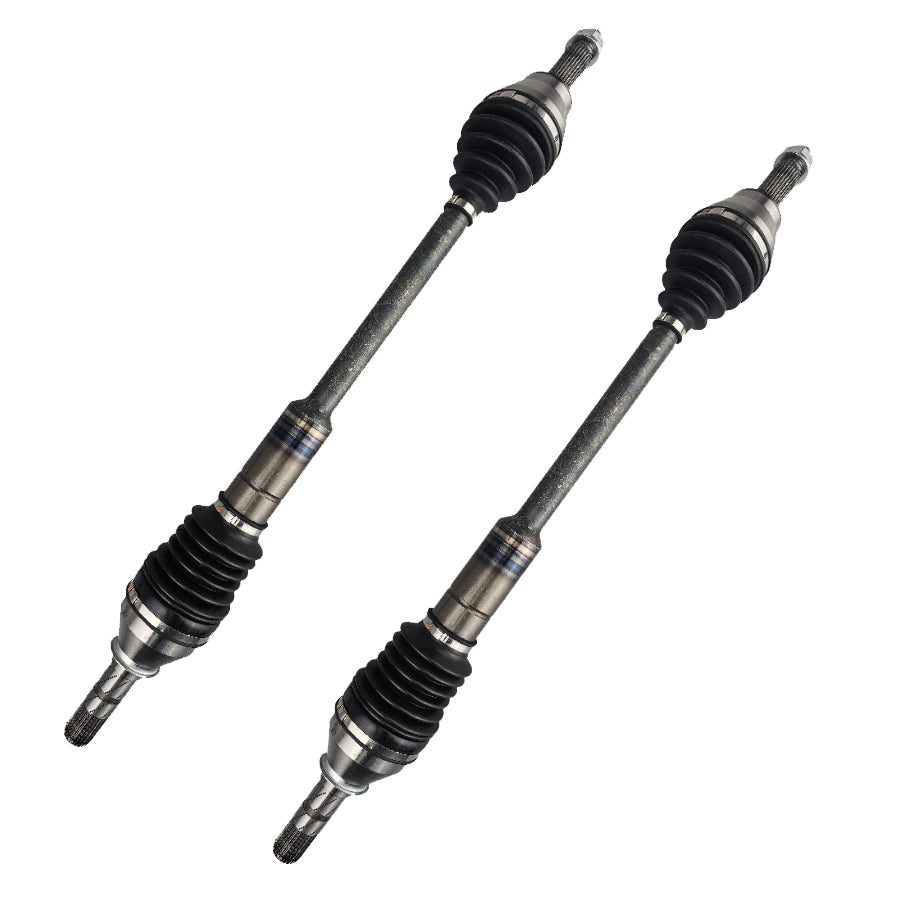

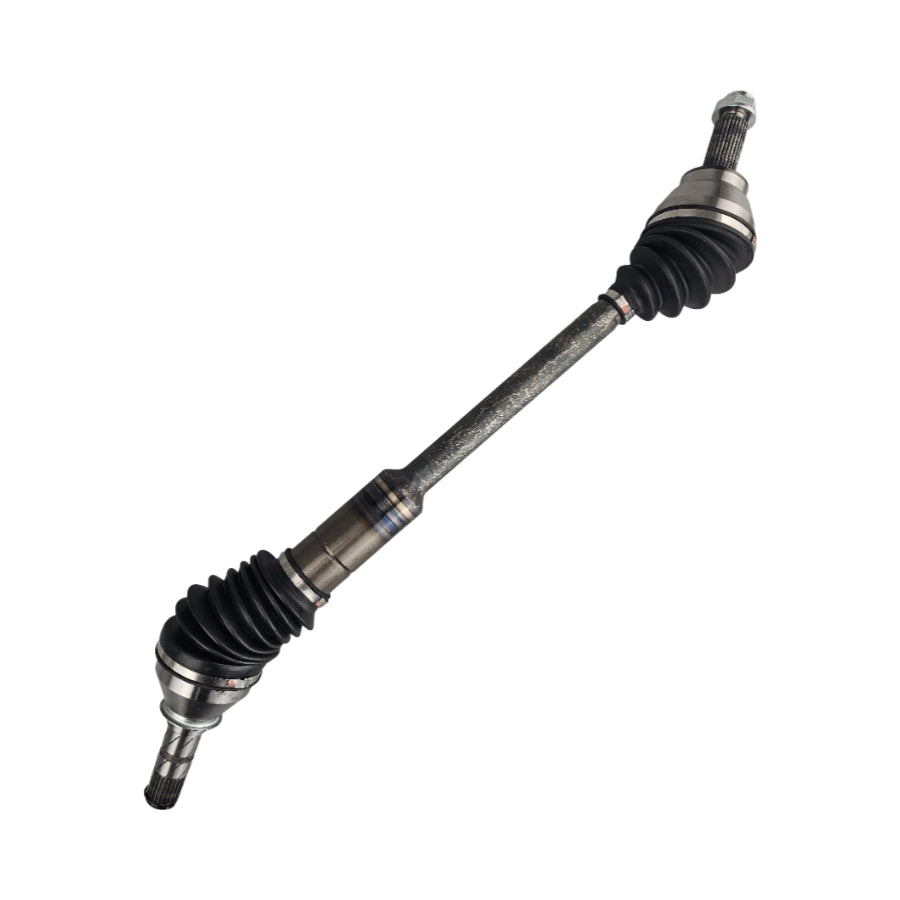

One Pair CV Axle Drive Shaft - Left- or Right-Hand Side CVT/Automatic/Manual AWD

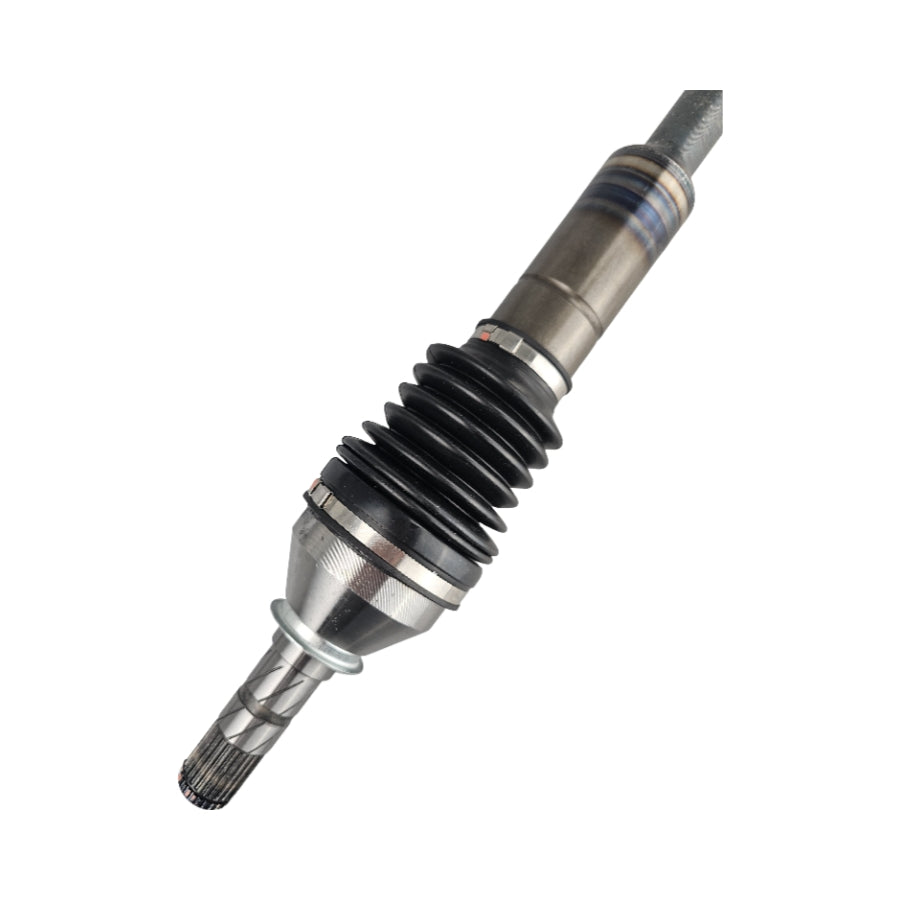

New Heavy Duty Telescopic Design - Sliding Extension Shaft with Roller Splines
For Lifted and Non-Lifted Vehicles, Compressed Length 800mm Extends to 857mm
Telescopic CV shafts are designed to provide greater linear travel compared to standard CV shafts, allowing for more suspension articulation and reduced stress on components.
Built tough to OEM specifications using heat-treated chrome steel, maximizing product life. High-quality Neoprene dust boots and stainless-steel clamps help to prevent contamination. Moly grease for working at varying angles and speeds without friction, at high revolutions.
Vehicle Fitment For:
- Subaru Forester 2.0i SJ, S13 SJ5 (08/2012~07/2018) 4 Door SUV Compact 2.0 litre, FB20A F4 16v DOHC VVT MPFI (110kW)
- Subaru Forester 2.0XT, tS SJ, S13 SJG (08/2012~07/2018) 4 Door SUV Compact 2.0 litre, FA20E F4 16v DOHC VVT I/C Turbo Direct Inj (177kW)
- Subaru Forester 2.0D SJ, S13 SJD (08/2012~07/2018) 4 Door SUV Compact 2.0 litre, EE20 F4 16v DOHC I/C Turbo CRD (108kW)
- Subaru Forester 2.5i SJ, S13 SJ9 (08/2012~07/2018) 4 Door SUV Compact 2.5 litre, FB25A F4 16v DOHC VVT MPFI (126kW)
- Subaru Forester HYBRID SK, S14 SKE (05/2019~2026) 4 Door SUV Compact 2.0 litre, FB20W F4 16v DOHC VVT MPFI (12.3kW/110kW - 4.8Ah)
- Subaru Impreza 2.0i, 2.0-L, 2.0-S GT, G14 GT7 (09/2016~10/2023) 4 Door Hatchback 2.0 litre, FB20C F4 16v DOHC VVT MPFI (115kW)
- Subaru Outback AWD BT, B16 BT9 (10/2020~2026) 4 Door Wagon 2.5 litre, FB25C F4 16v DOHC VVT MPFI (138kW)
- Subaru XV GT, G24 GT7 (03/2017~12/2022) 4 Door SUV Compact 2.0 litre, FB20C F4 16v DOHC VVT MPFI (115kW)
- Subaru XV HYBRID GT, G24 GTE (11/2019~12/2022) 4 Door SUV Compact 2.0 litre, FB20W F4 16v DOHC VVT MPFI (12.3kW/110kW - 4.8Ah)
Sizing and Specifications
- Length (Compressed) to (Extended): 800mm to 857mm

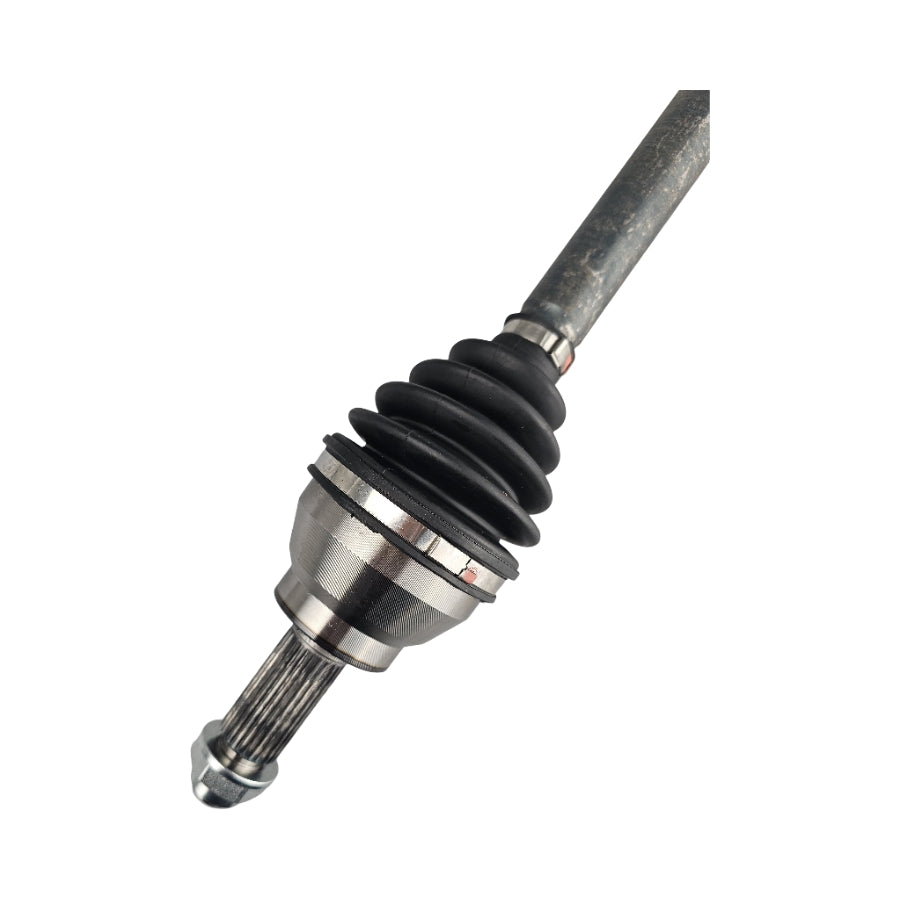

- Spline Count - Outer/Wheel Side: 27T
- Spline Count - Inner/Diff Side: 25T
What's Included
Our comprehensive range of constant velocity driveshafts is continuing to lead the way in the driveline aftermarket. The excellent performance and quality has resulted in their growing popularity. The range now boasts over 750 individual part numbers, which covers the vast majority of passenger and 4WD applications on Australian roads today. All our CV driveshafts are covered by a 12 month / 20,000 km warranty. Please note: this excludes CV Boots, which are only warranted for 3 months from date of purchase.
