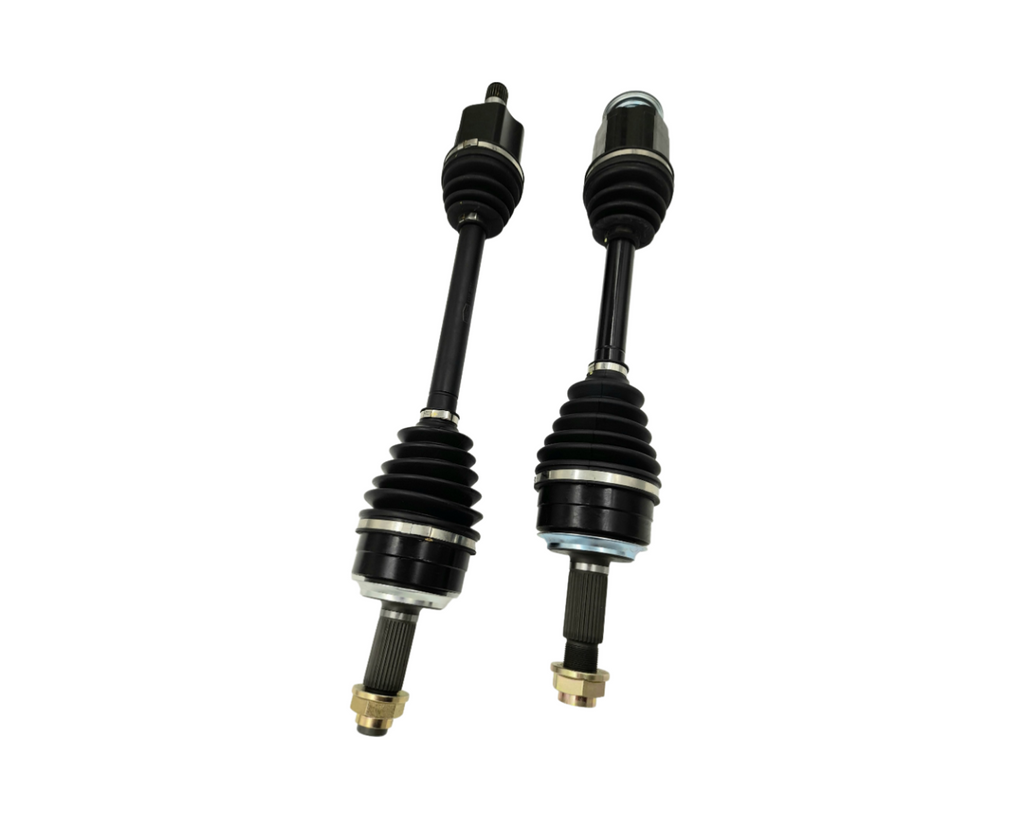

CV Axle Drive Shaft PAIR Left and Right Hand Side Automatic 4WD
PAIR kit, For 2.4L 4WD Models Only
Vehicle Fitment
- Honda CRV RE RE4 2.4L K24Z1 4WD Manual Automatic (10/2006 - 10/2012)
Includes Sub-Models
- Honda CRV RM RM4 2.4L K24A K24Z9 4WD Automatic (11/2012 - 06/2017)
Includes Sub-Models VTi, VTi LE, VTi Plus, VTi-L, VTi-LT, VTi-S
Sizing and Specifications
Right Hand Side
- Length (Compressed): 558mm
- Spline Count - Outer/Wheel Side: 30
- Spline Count - Inner/Diff Side - Female: 25 + 2 Blank
- Inboard Joint Type: Tripod
- Outboard Joint Type: Ball
Left Hand Side
- Length (Compressed): 672mm
- Spline Count - Outer/Wheel Side: 30
- Spline Count - Inner/Diff Side: 27
- Inboard Joint Type: Tripod
- Outboard Joint Type: Ball
What's Included
Built tough to OEM specifications using heat-treated chrome steel; maximizing product life. High-quality Neoprene dust boots and stainless steel clamps helps to prevent contamination. Moly grease for working at varying angles and speeds without friction, at high revolutions.
