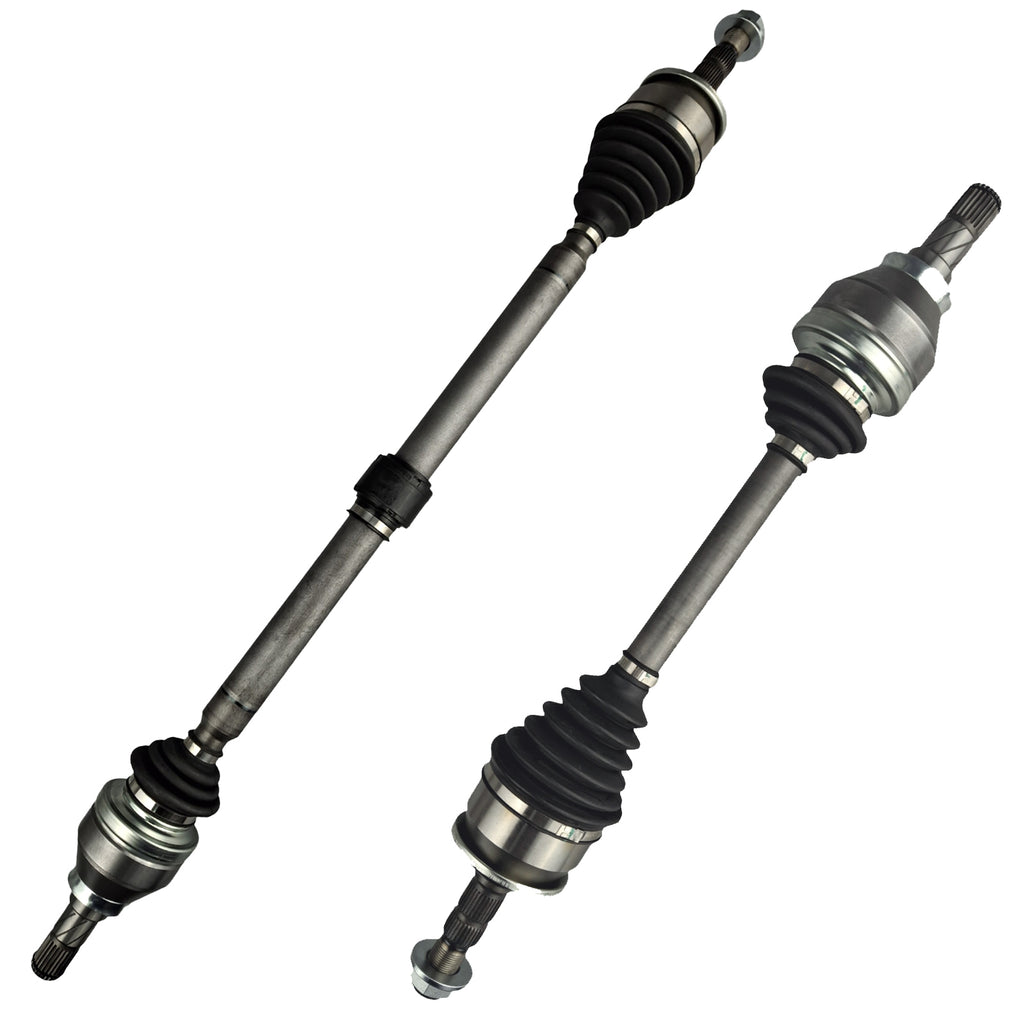

Pair CV Axle Drive Shaft - Left and Right Hand Side Manual FWD
PAIR Kit Left and Right Side, Manual Only
For Automatic 1.4L Models Please See CVA1605-CVA1606
Built tough to OEM specifications using heat-treated chrome steel; maximizing product life. High-quality Neoprene dust boots and stainless steel clamps helps to prevent contamination. Moly grease for working at varying angles and speeds without friction, at high revolutions.
Vehicle Fitment
- Holden Astra BK 1.4L B14XFT Turbo I/C FWD (11/2016 - 06/2020) Manual Only
Includes Sub-models R, R+
- Holden Astra BK 1.6L B16SHT Turbo I/C FWD (11/2016 - 06/2020) Manual Only
Includes Sub-models RS, RS-V
Sizing and Specifications
Left CV Shaft
- Length (Compressed): 621mm
- Spline Count - Outer/Wheel Side: 33
- Spline Count - Inner/Diff Side: 25
- Inboard Joint Type: TBA
- Outboard Joint Type: TBA
- ABS Ring Teeth: TBA
- Bearing Outer Diameter on Extension Shaft: TBA
- Extension Shaft Bearing Width: TBA
Right CV Shaft
- Length (Compressed): 976mm
- Spline Count - Outer/Wheel Side: 33
- Spline Count - Inner/Diff Side: 25
- Inboard Joint Type: TBA
- Outboard Joint Type: TBA
- ABS Ring Teeth: TBA
- Bearing Outer Diameter on Extension Shaft: TBA
- Extension Shaft Bearing Width: TBA
What's Included
Our comprehensive range of constant velocity driveshafts is continuing to lead the way in the driveline aftermarket. The excellent performance and quality has resulted in their growing popularity. The range now boasts over 750 individual part numbers, which covers the vast majority of passenger and 4WD applications on Australian roads today. All our CV driveshafts are covered by a 12 month / 20,000 km warranty. Please note: this excludes CV Boots, which are only warranted for 3 months from date of purchase.
