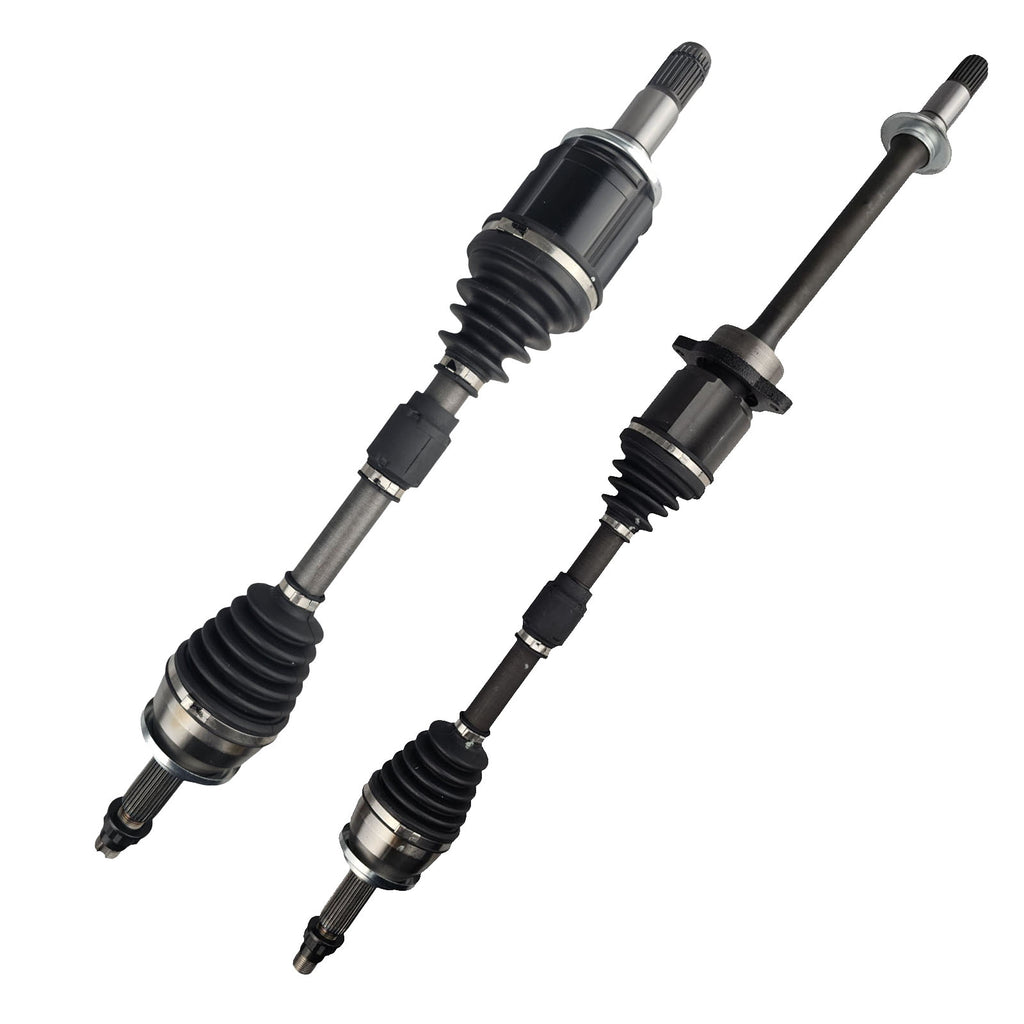

Brand New PAIR Left Right Front CV Drive Shaft Set
***Note: Please double check before purchasing.***
Built tough to OEM specifications using heat-treated chrome steel for maximum product life. High-quality Neoprene dust boots and stainless steel clamps help prevent contamination. Packed with moly grease to perform at varying angles and speeds without friction, even at high revolutions.
Vehicle Fitment Information for:
- Toyota Kluger Hybrid AXUH78R AXUH78 (03/2021–/2026) 2.5 litre, A25AFX5/SNM I4 16v DOHC VVT Dual inj (40kW/142kW - 1.6kWh)
- Toyota Kluger GSU70R GSU70 (03/2021–10/2022) 3.5 litre, 2GRFKS V6 24v DOHC VVT Dual inj (218kW)
⚠️ Important Notes for You:
We strongly advise using the Australian Number Plate lookup to confirm fitment.
Sizing and Specifications
Right
- Length (Compressed): 1020 mm
- Spline Count - Outer/Wheel Side: 30
- Spline Count - Inner/Diff Side: 24
- Inboard Joint Type: Tripod
- Outboard Joint Type: Ball
- Hub Nut: M22 x 1.5
- Extension Shaft Length from Bearing: 377.5 mm
- Extension Shaft Length from Tin Seal: 96.5 mm
- Extension Shaft Bearing Cradle OD: 81 mm
- Extension Shaft Bearing Cradle Bolt Hole PCD: 113.8 mm
Left
- Length (Compressed): 694mm
- Spline Count - Outer/Wheel Side: 30T
- Spline Count - Inner/Diff Side: 24T
- Inboard Joint Type: Tripod
- Outboard Joint Type: Ball
- Hub Nut Style: M22 x 1.5
What's Included
All components include a 12 month/20,000km warranty and support from our specialist team.
