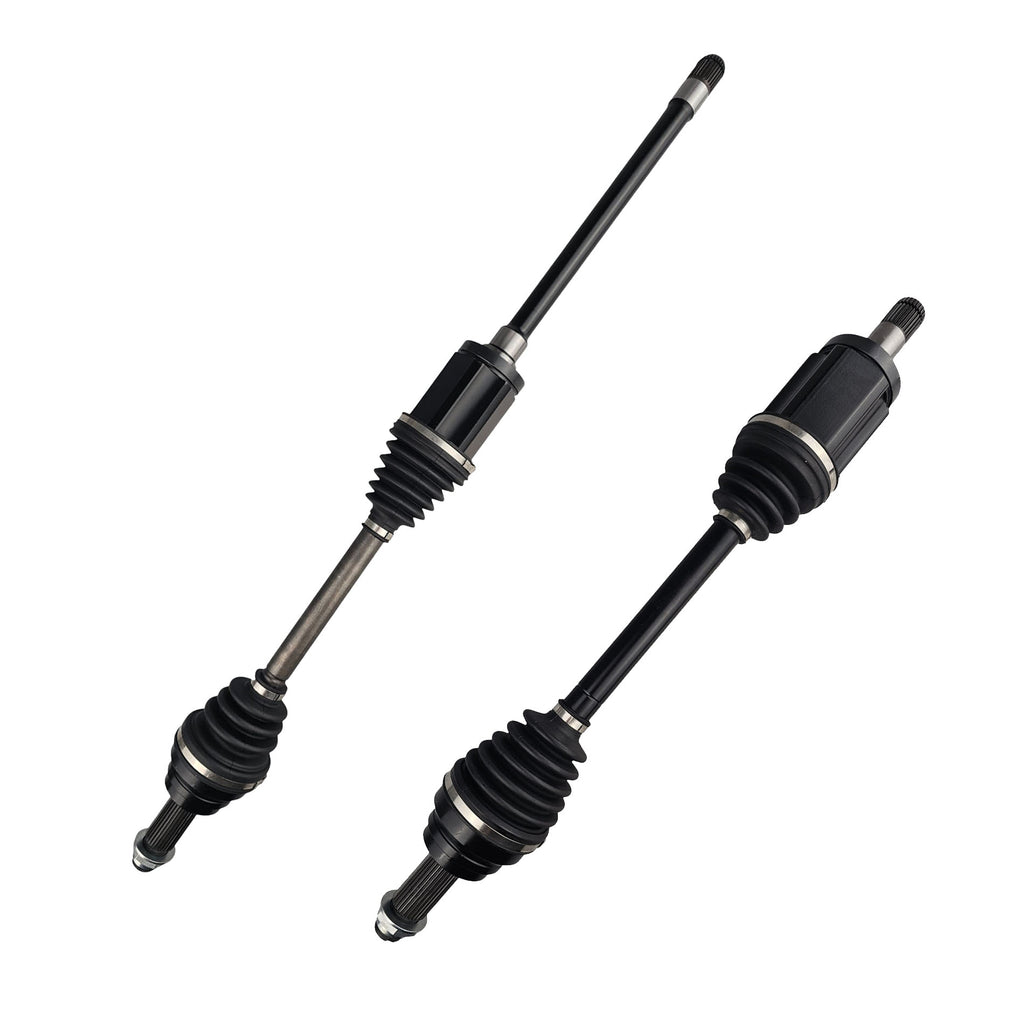

Brand New PAIR Left Right Front CV Drive Shafts
***Note: Please double check before purchasing.***
Built tough to OEM specifications using heat-treated chrome steel for maximum product life. High-quality Neoprene dust boots and stainless steel clamps help prevent contamination. Packed with moly grease to perform at varying angles and speeds without friction, even at high revolutions.
Vehicle Fitment Information for:
- BMW X5 F15 2.0L N47D20D B47D20B N20B20A(Hybrid) / 3.0L N55B30A AWD Automatic (11/2013 - 11/2018)
- Includes Sub-Models xDrive 25d, xDrive 40e, xDrive 35i
- BMW X5 F15 3.0L N57D30A N57D30B ND57D30C AWD Automatic (10/2013 - 11/2018)
- Includes Sub-Models xDrive 30d, XDrive 40d, M50d
- BMW X5 E70 3.0L M57D30TU M57D30TU2 M57D30TU2TOP N57D30A N57D30B N57D30C AWD Automatic (03/2007 - 09/2013)
- Includes Sub-Models 3.0d, Executive, xDrive 30d, xDrive 35d, 3.0sd, Edition Exclusive, M Sport Limited Edition, Performance Edition, xDrive 40d Sport, M50d
- BMW X6 E71 3.0L N54B30 M57D30TU2TOP N57D30B N57D30A N57D30C / 4.4L N63B44A S63B44 AWD Automatic (07/2008 - 12/2014)
- Includes Sub-Models XDrive 35i, Edition Exclusive, Sport, Sport+ Innovations, xDrive 30d, xDrive 35d, xDrive 40d, M50d, xDrive 50i, M
- BMW X6 F16 3.0L N55B30 N57D30A N57D30B N57D30C / 4.4L N63B44B AWD Automatic (04/2015 - 07/2019)
- Includes Sub-Models xDrive 35i, xDrive 35d, IND Collevtion, M Sport, xDrive 40d, M50d, xDrive 50i
- BMW X6 F86 4.4L S63B44 AWD Automatic (04/2015 - 09/2018)
- Includes Sub-Models M
⚠️ Important Notes for You:
We strongly advise using the Australian Number Plate lookup to confirm fitment.
Sizing and Specifications
Left CV Shaft
- Length (Compressed): 662mm
- Spline Count - Outer/Wheel Side: 30T
- Spline Count - Inner/Diff Side: 27T
- Inboard Joint Type: Tripod
- Outboard Joint Type: Ball
- Drive Shaft Seal - Diff Side ID: 44mm
- Hub Nut Style: M27 x 1.5
Right CV Shaft
- Length (Compressed): 979mm
- Spline Count - Outer/Wheel Side: 30T
- Spline Count - Inner/Diff Side: 27T
- Inboard Joint Type: Tripod
- Outboard Joint Type: Ball
- Drive Shaft Seal - Diff Side ID: 44mm
- Hub Nut Style: M27 x 1.5
- Extension Shaft Length from inside of Oil Seal Shoulder: 371.5mm
What's Included
All components include a 12 month/20,000km warranty and support from our specialist team.
